Sunday, 19 June 2011

TU882 and the DT880

Again, I found an excuse in my packing to swap the headphones, from the Sennheiser HD650 to the Beyerdynamic DT880 (600 ohm version). The first thing I noticed was that there was no noise at all. No hum. Virtually silent. Very promising indeed. Listening to my standard favourite/test set of music, there were a number of differences between the Senns and the Beyers.

The bass is more present (i.e., louder) and rich with the Senns. The Beyer, they feel more articulate, but less in your face. Far more restrained on the Beyers, where on the Senns they feel like it has been let loose a little. The presentation of the Beyers was less warm than the Senns, and a little more clinical. The voices on the Beyer is more refined, but lack the lushness, similar as well with guitar strumming, the Beyers are precise, but lack that slight indulgence that makes it full and warm. Overall, the balance favours the mids and probably overall a little more balanced than the 650's, though probably a little shy in the bass region. I would regard the Beyers DT-880 as more precise, controlled and pristine. Whereas, I would describe the HD-650 as warm, natural and lush. Obviously very vague terms, which are highly subjective, not only to me, but between different sessions, moods, etc.

The above observations were made between two sessions, over two consecutive evenings at around the same time. The setup was identical except for the headphones, and it was the Elekit TU-882R with the Western Electric 396a (with around 20 hours on them thus far). The volume control was different by around 2 to 4 'hours' relative to each other.

Saturday, 18 June 2011

C3g Headphone Idea

Here is something that I knocked up quickly as I was listening to the HD650 and Elekit headphone setup. This is in a similar vein to my D3a concept and shares many similar parts. I think this project would be very quick to knock up. This would make use of the TubeCAD Regulator PCB kit, making the build itself even more straight forward. The main reason for considering the C3g as well as the D3a tube are the various comments on the Internet regarding the consistency between various D3a samples. It appears that there may be a high sample variation between the tubes, and careful selection is required. The C3g, being a lower Gm tube, may have less sample variation. But time will tell, as I have to actually build the two amps first, to test the outcome. Again, this might work for other triodes as well.

Thursday, 16 June 2011

More thoughts on the TU882R

Just having a lovely session with the TU882R and the HD650 right now. They WE396a tubes are in, and has been warmed up for over half an hour. Just a casual, easy listening session now, with Missy Higgins, Crowded House and Coldplay. A very nice way to end the day...

I am now trying the HD650 with the Medium impedance switch. The hum is now gone, and the amp is dead silent. According to the manual, this impedance setting is for 20 to 100 ohm headphones. However, I am trying to discern if there are any sonic differences between the two settings, apart from the hum. First impression is that the sound isn't as dynamic or lively. It is a little more laid back and somewhat 'lazy'. The bass isn't as well controlled or present either.

Well, after the recent experience with the WE tubes, I decided to order three more pairs of the 5670/396a from Brent at Audio Tubes. As usual, all my previous experiences with Brent has been excellent, and this time around, it was no different. He offered a good deal when I purchased three pairs; Western Electric 396a, WE made 396A for National and a British pair labelled 'National'. I have always had good experiences with British made tubes, the 12AE6A Brimars being a prime example, and thought that they could be a good counterpoint comparison with the others. Well, I hope to receive them in the next few weeks or so, and start to enjoy their different sonics.

As I am writing this, I am definitely preferring the high impedance tap, even though there is the hum in the background. It just mates so much better with the HD650. Well, more testing to come.

I have recently noticed that some of my music has very strong super stereo effect, where music is coming out of one side only. I do find this a little distracting at times, and started to look into placing a crossfeed. I installed with in my Mini Max Millett but never used it, cause it didn't sound right. On review of the setup, I think I might have wired it incorrectly. The next step is to remove it from the amp itself, and create myself a little stand alone box to house the crossfeed. This might make it easier to compare the effect and see whether it is right for me. Anyway, more to come later.

Monday, 13 June 2011

WE Strikes!

The thing was, as I was starting to pack up the stuff ready for the move, I was in the room with all my headphone gear, and decided that it was best to do all the packing with the headphones on. As such, I thought, why not try the Elekit for the next week. So, out with the Crack, and in with the TU882. And the first thing I noticed was that the hum was not as loud as before (or so I thought), but it was definitely lower than the Crack that I just unplugged. That is the good news. The bad news was, I was using a pair of Raytheon 2C51 and I just wasn't all that endearing, the sound that is. So, I thought, I might spend a few minutes to change out the Raytheon and put in a pair of WE396a that I had purchased. Firstly, it was very soft on the right ear, almost no sound. My heart sank....

Was it the amp, or the new tubes? No idea. But as the amp got warmed up, slowly, the volume on the right side picked up and now it settled in to match the left. A sigh of relief. But boy, only the first hour of music, and the sound is so much better! So much so, I am thinking I need to get me more of the Western Electric NOS. Another thing I noticed was that the hum levels was actually less than the Raytheon tubes (this is going by memory...). But, it is now very quiet. Not dead silent, but very quiet. Not as quiet as the Ear, but close. Regardless, the sound was so much improved, it makes me really want to keep listening to this setup.

Anyway, a moment of revelation, and onto the shopping!

Saturday, 11 June 2011

Crack and Speedball Up and Running!

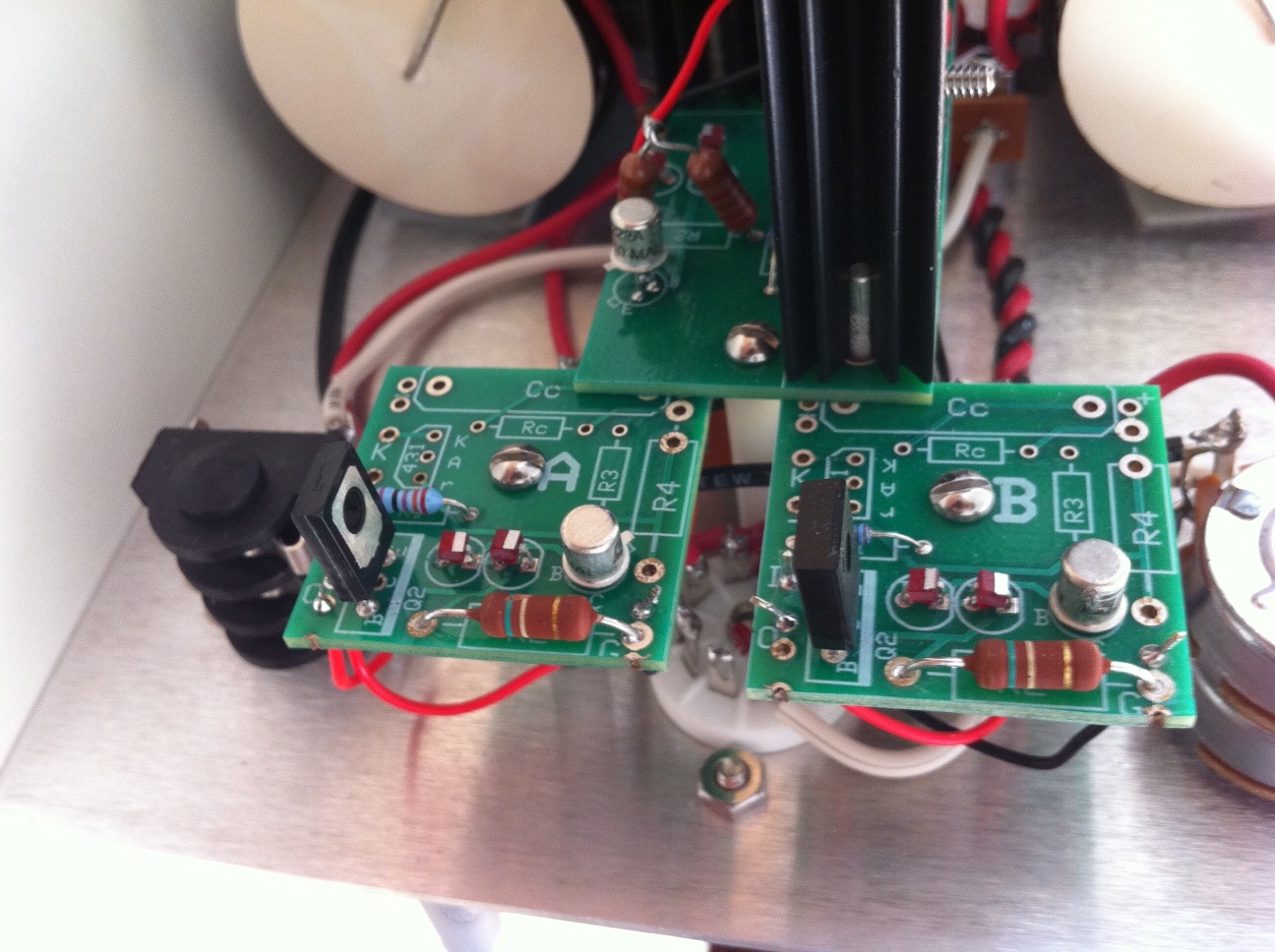

Finally put the replacement parts into the C4S board this morning. See the photos below. The rebuild itself was very quick, only 5 components to solder and 3 wires to reconnect. After doing a few visual checks to make sure everything was in order, I fired her up. And yes, it worked! No problems this time. Equal volume on both sides, and all LED lighting up as they should. Now this amp has been fixed, I now have four fully working headphone amps; the Crack, TU882R, Ear+ and the MiniMax Millet. I'd have to say that the sound stage is a lot more compressed then what I remembered last time I was listening to this amp. I am using the stock tubes supplied by Bottlehead, which is a Philips ECG 6080WC and (I think) a Sylvania 12AU7.

An initial observation about the floor noise of the Crack. There is a hum, but given it is AC filaments, it could be from that source, but it could also be from the B+, who knows. I would have to say that it is not as loud or obvious as the hum on the Elekit, but this is just anecdotal observation, as the last time I listened to the Elekit was a few weeks ago. Again, the Ear+ doesn't have this problem, but that is DC filaments. Could it be from the B+? The Crack has CRCRC filtering. The Ear has CRC for the output tube, and an additional RC stage for the driver tube. The Elekit has  cap input, followed by a FET, which I can only presume is acting as some kind of series regulator.
Well, moving house very soon, and all of this needs to be packed up and transported. However, the beauty of the headphone amp and system, is that they are so portable, and can be one of the last things packed, and the first items unpacked. I think in the coming months, I'd have a good opportunity to start some comparisons between the three amps.

Saturday, 4 June 2011

Repair of the Crack/Speedball

Finally got around to removing the board that was damaged due to my own fault. See the photos below. You can see a very small hole in the small blue resistor 237R. It measures over 4k now. One of the diodes also do not bias up at 1.4V. All parts removed and the through holes cleaned. I accidentally ordered the 2N2907 and 2N2222, rather than the "A" versions. Now, I have ordered the correct ones, and also a replacement 237R resistor. Should all arrive by next weekend, in time for re-installation.
